Replacement Windshield Cowl

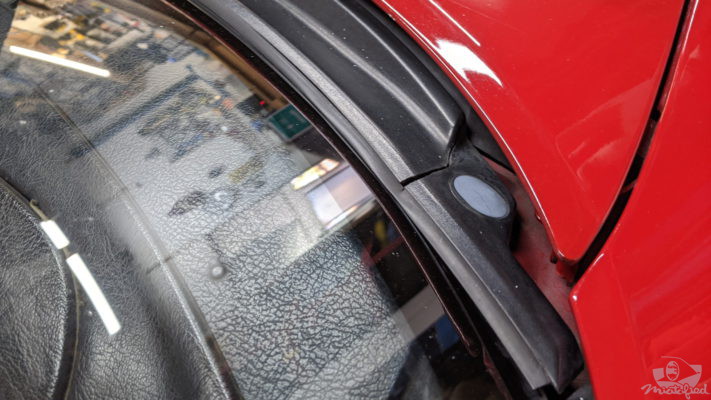

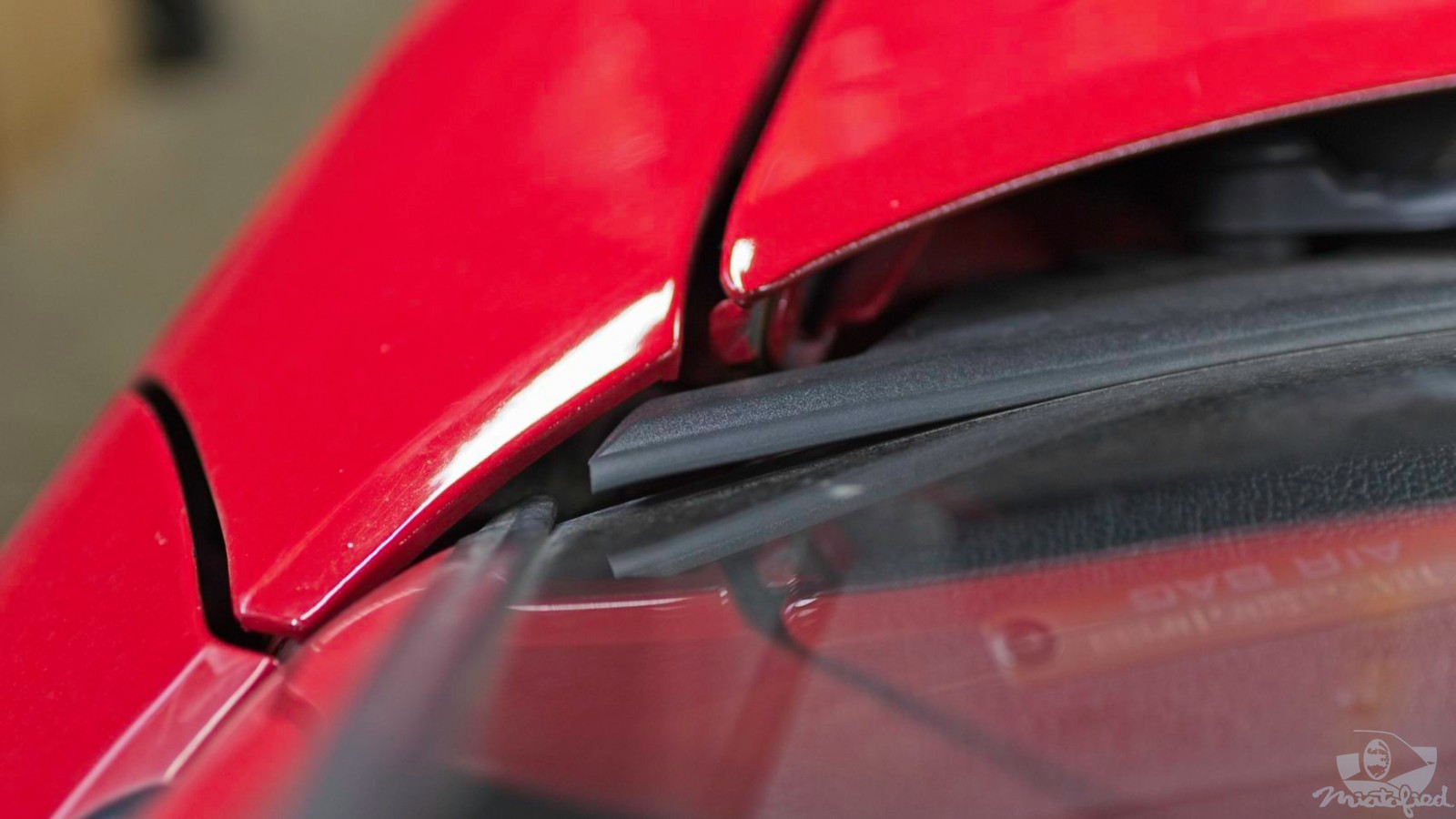

Old broken windshield cowl

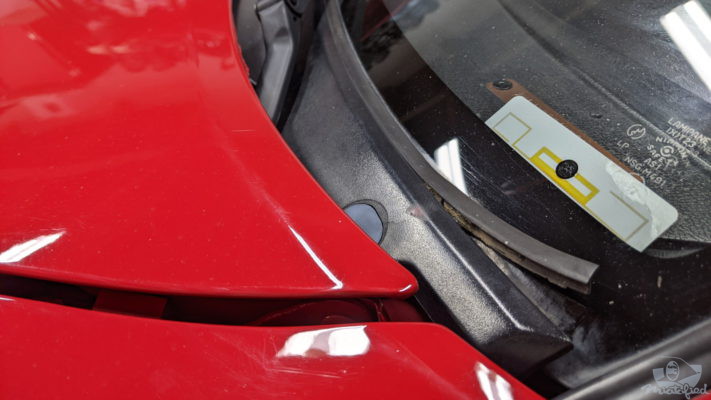

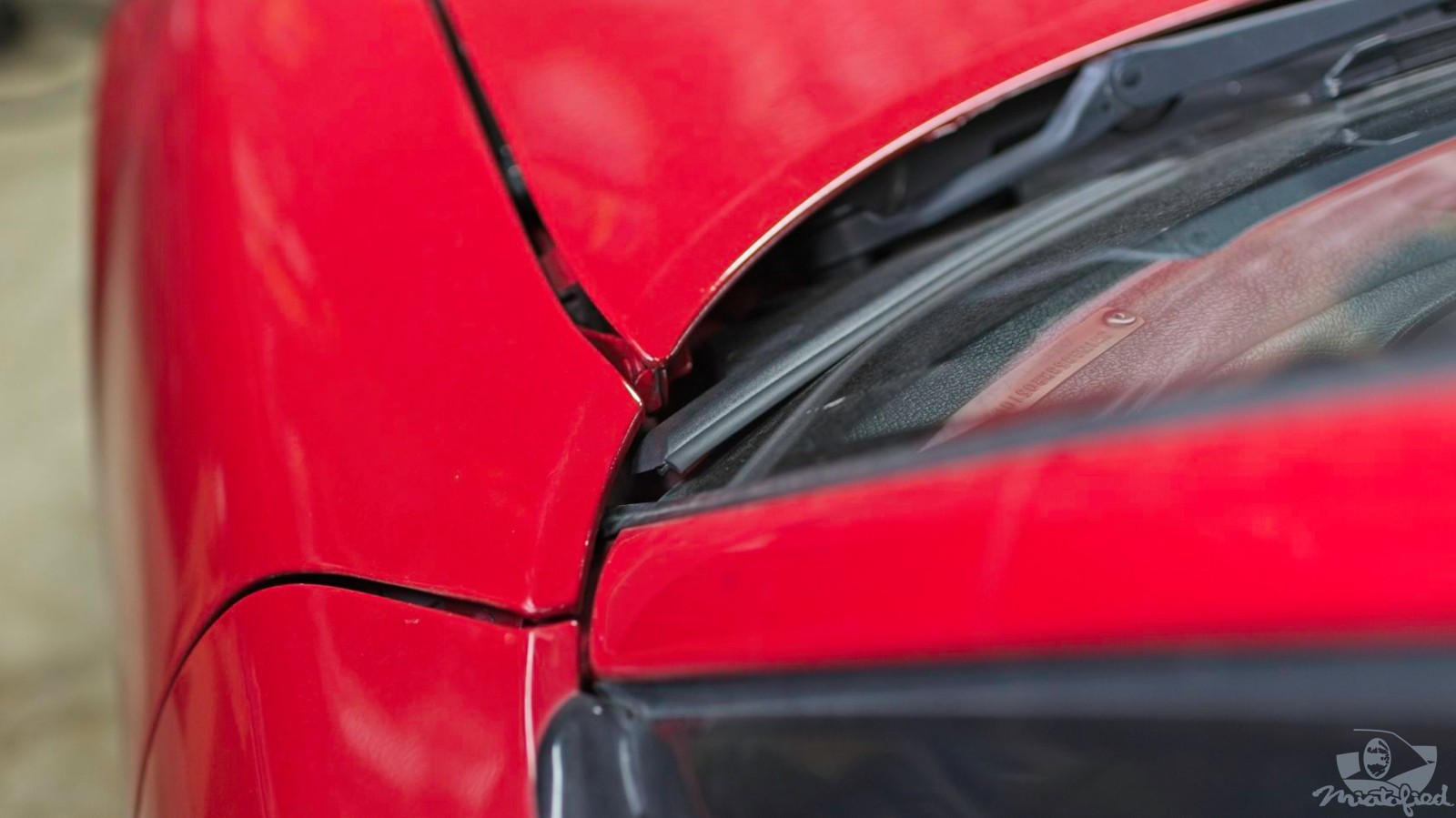

Weatherseal peeling off old windshield cowl

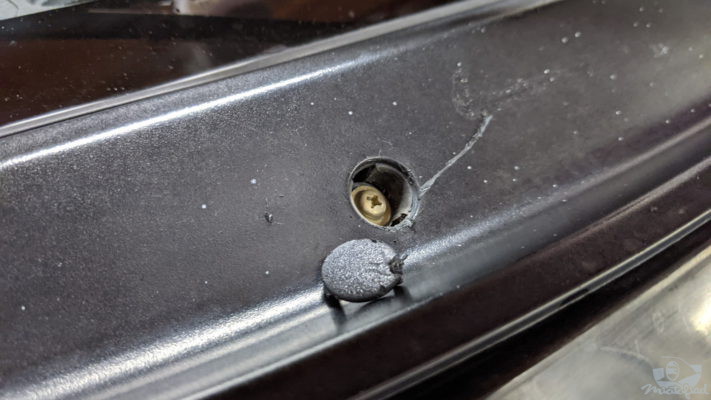

Removed screw cap

It is difficult to remove the screw covers without marring the cover or the nearby cowl. Hopefully these pictures help show where the tabs are located. Luckily, the windshield kit I bought came with all new plastic fasteners.

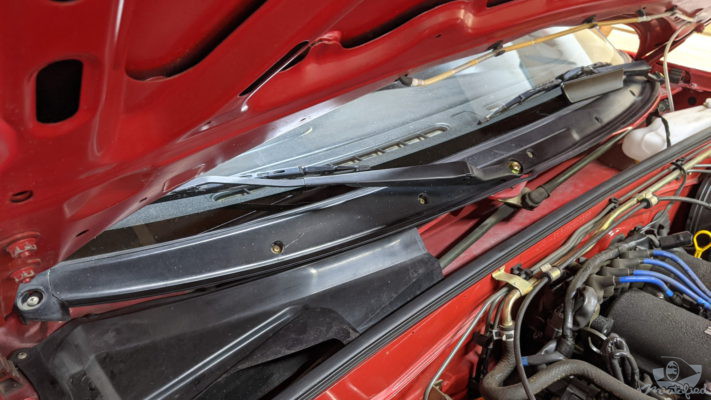

Plastic screw covers removed

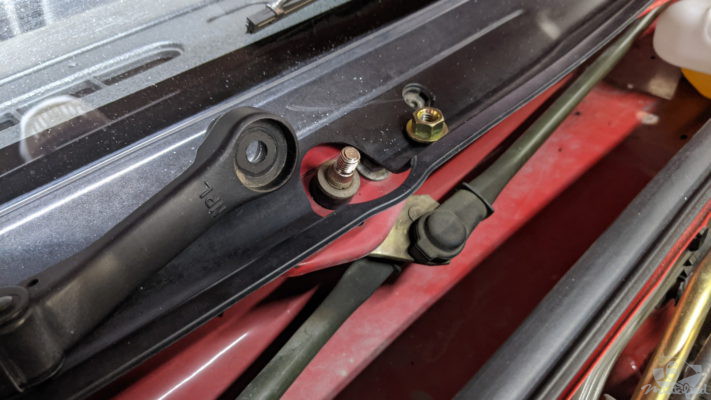

Removed windshield wiper

One nut under a dust cover attaches the windshield wiper. The spring-action of the wiper makes it difficult to remove from the threaded stud, but it comes off easily while holding the wiper straight.

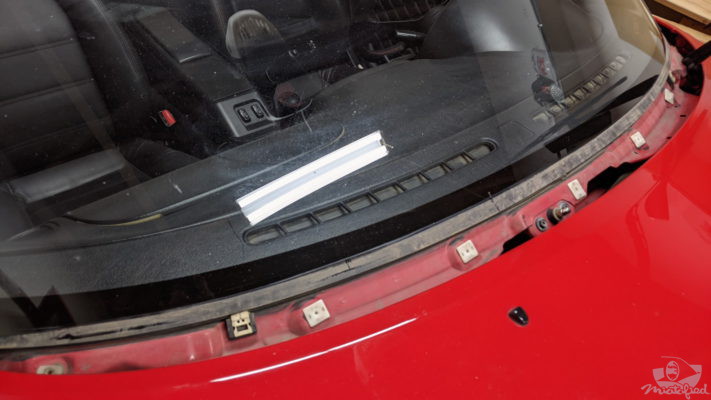

Windshield cowl removed

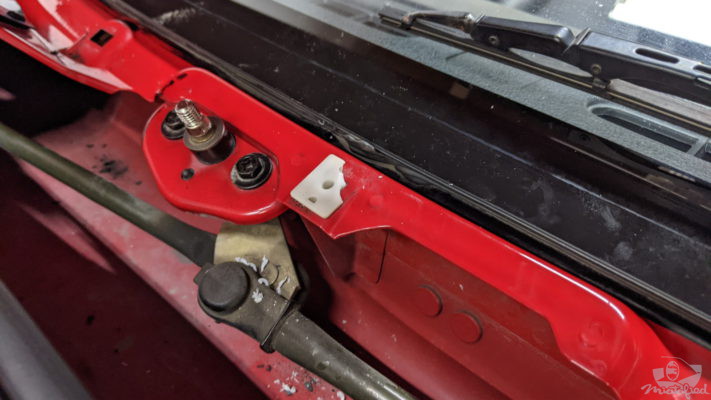

Broken windshield cowl clip

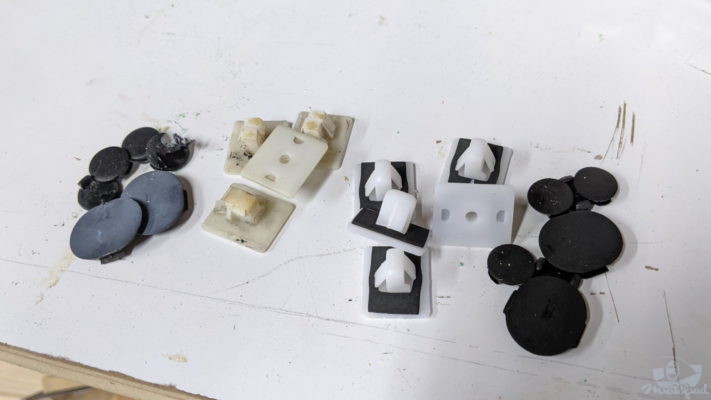

Replacement plastic fasteners

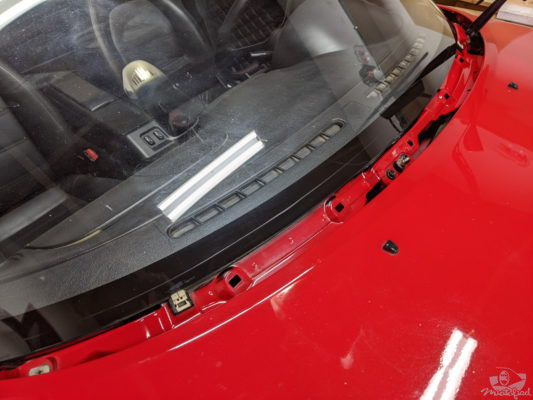

Plastic fasteners removed

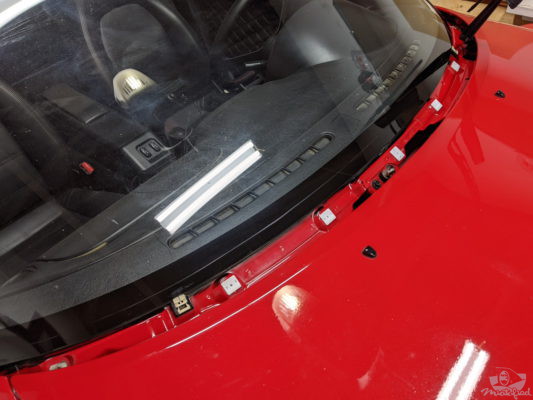

New clips installed

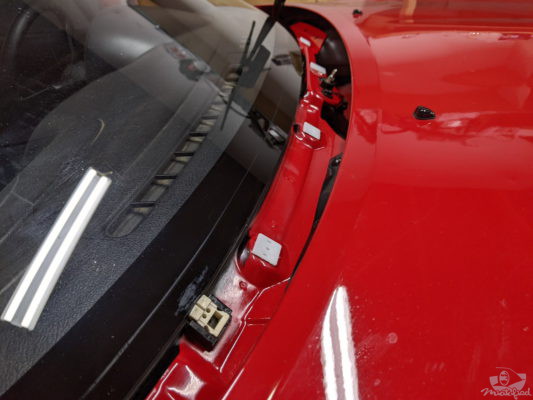

Cleaned windshield and new plastic clips

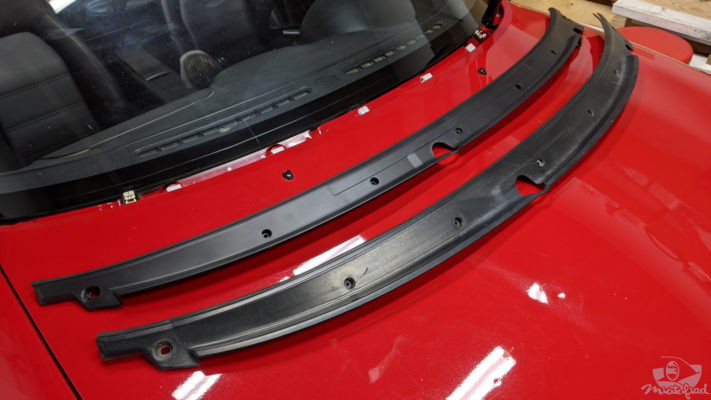

New windshield cowl compared to old

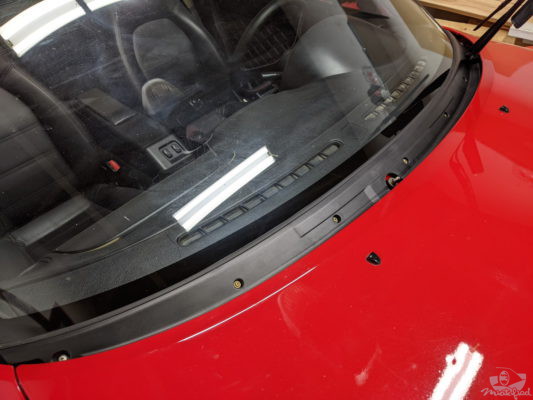

New cowl installed

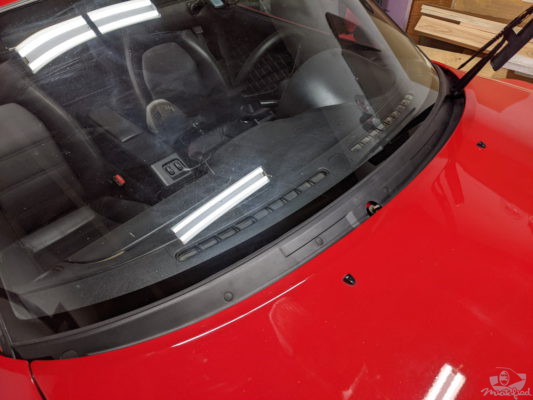

Screw covers added

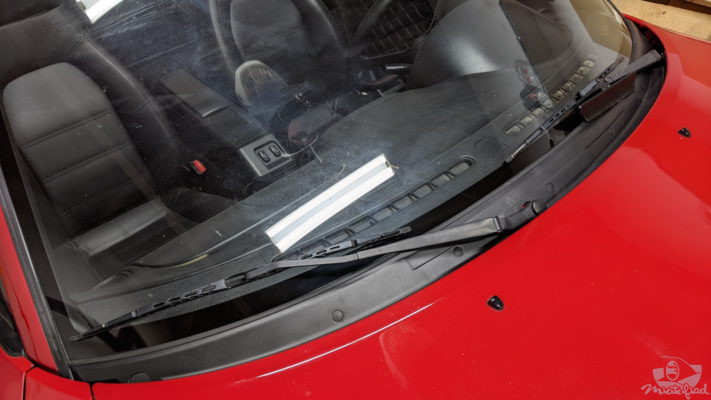

Wiper re-installed
PartsPrice
RSpeed Mazda Miata MX-5 Windshield Base Cowl 1990-2005 replaces NA01-50-790E$139
