HVAC Panel Replacement

October 18, 2022January 11, 2025 - by Miatafied - Leave a Comment

The temperature and fan control panel was looking yellowed from sun exposure. This is a super easy and cheap fix, because replacement reproduction panels are easy to find.

Original HVAC panel yellowing

HVAC panel with tombstone removed

The age of the panel was especially obvious compared to the white text on the new A/C knob.

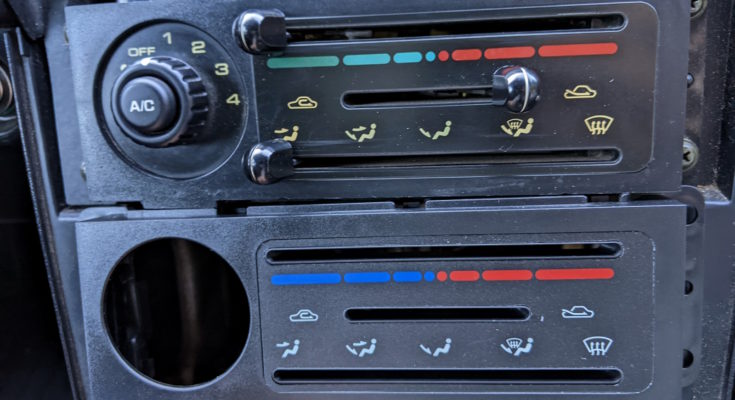

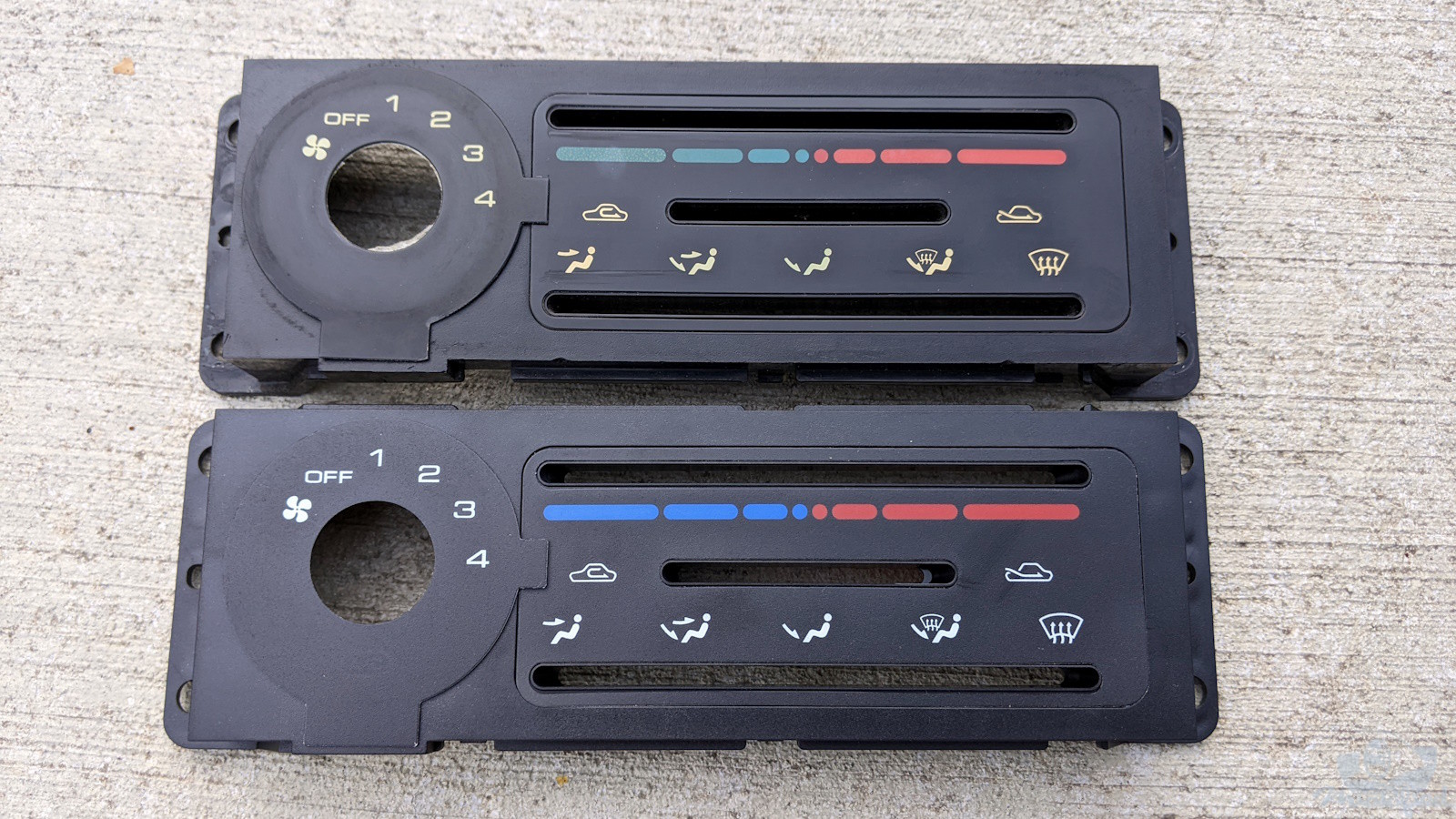

Original panel vs fresh replacement

Tiny phillips screws under each control knob keep them on

Adjustment knobs removed – the fan control knob is just pressed on

Old worn out fan control display

Acrylic light pipe that attaches for illumination

New fan control with adhesive backing

New HVAC control panel installed

Restored HVAC panel

Part	Price
Mazda NA01-61-C04A Heater Control Panel	$19
